Details

---

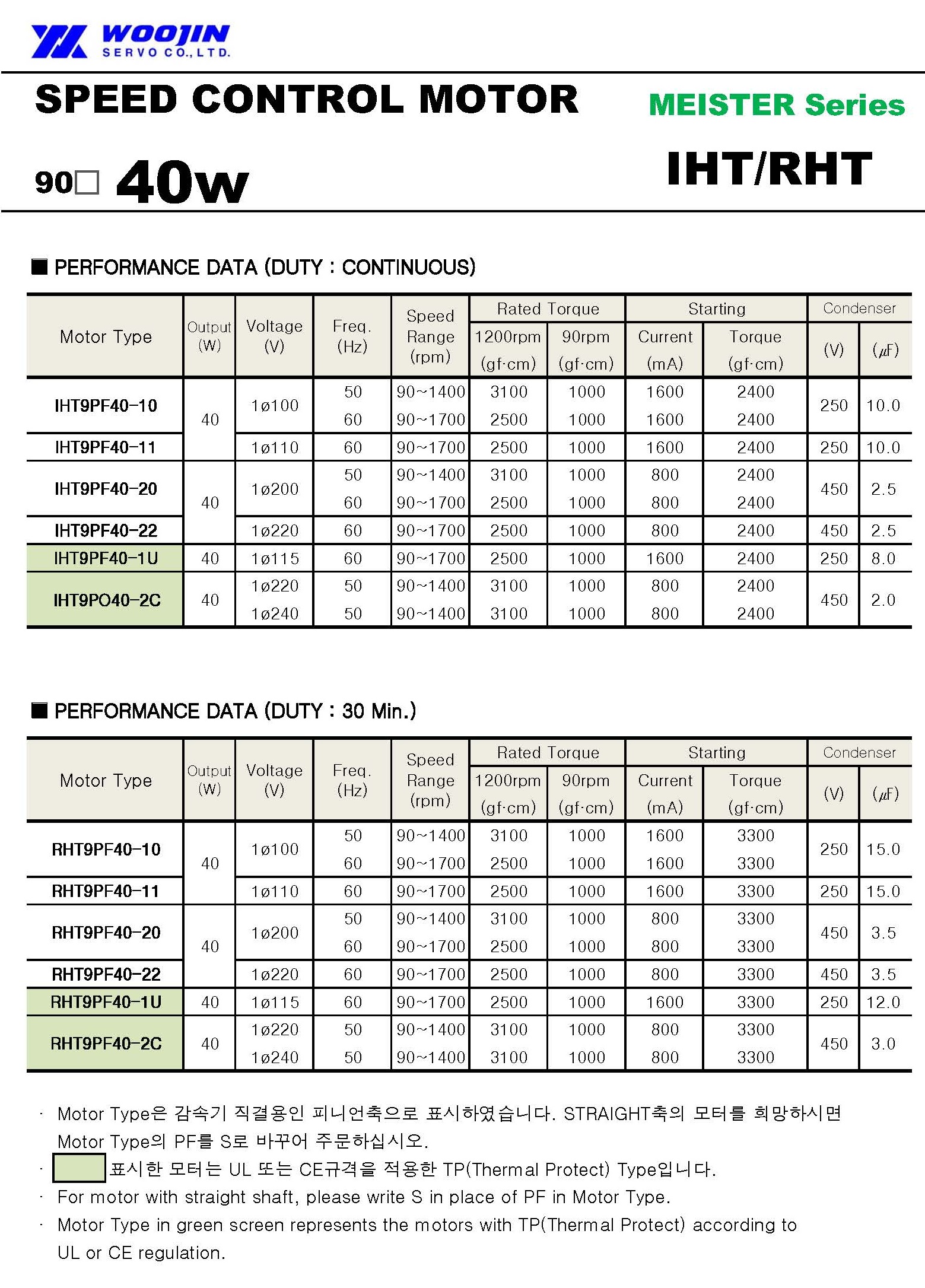

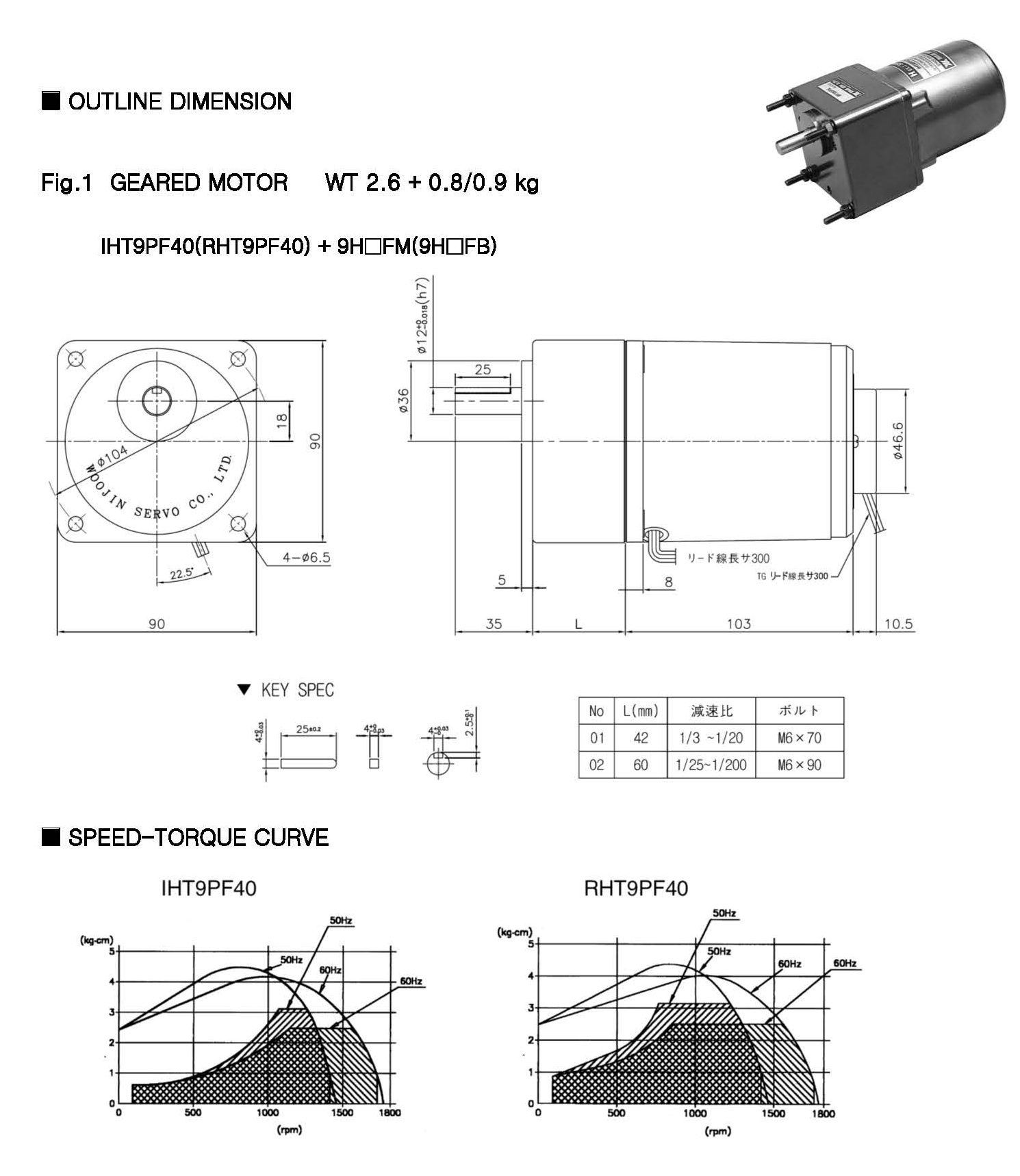

MEISTER Speed Control 40W Motor -  IHT9PO40-22GC / IHT9PF40-22GC

Specification :
Power: 40W
Voltage: Single-phase 200–240V (50/60Hz)
Current: Approx. 0.4A
Speed ​​Range: 90–1700 RPM (Standard)
Insulation Class: Class B
Protection Class: IP20 (Open)
Shaft Diameter: 11mm (Keyway Shaft)
Compatibility: Compatible with MEISTER speed controllers (e.g.) TG12V) achieves stepless speed regulation.

Application Scenarios

• Small automated equipment, packaging machinery, conveyor lines
• Precision instruments, medical equipment, office equipment
• Light-load transmission systems requiring smooth speed regulation
