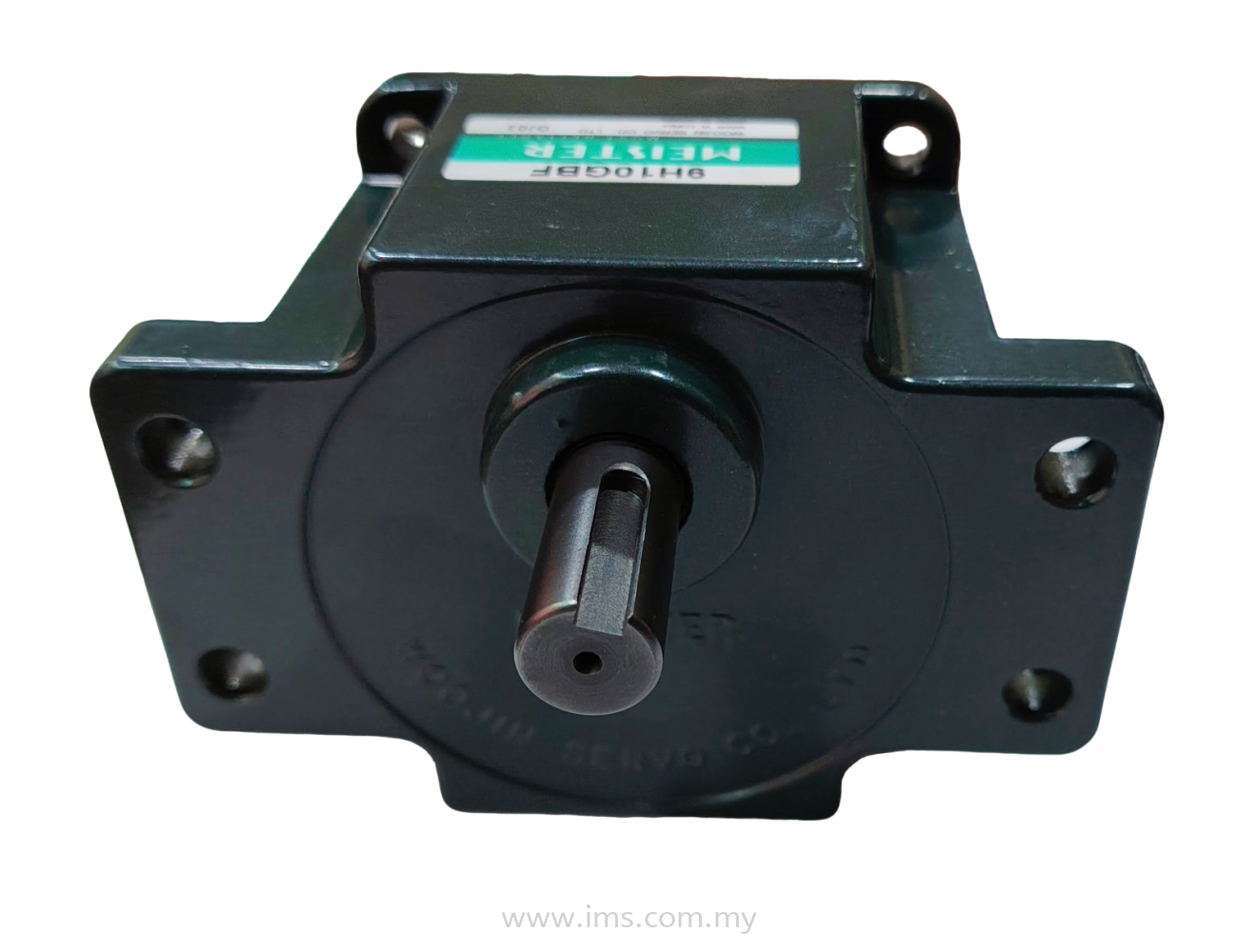

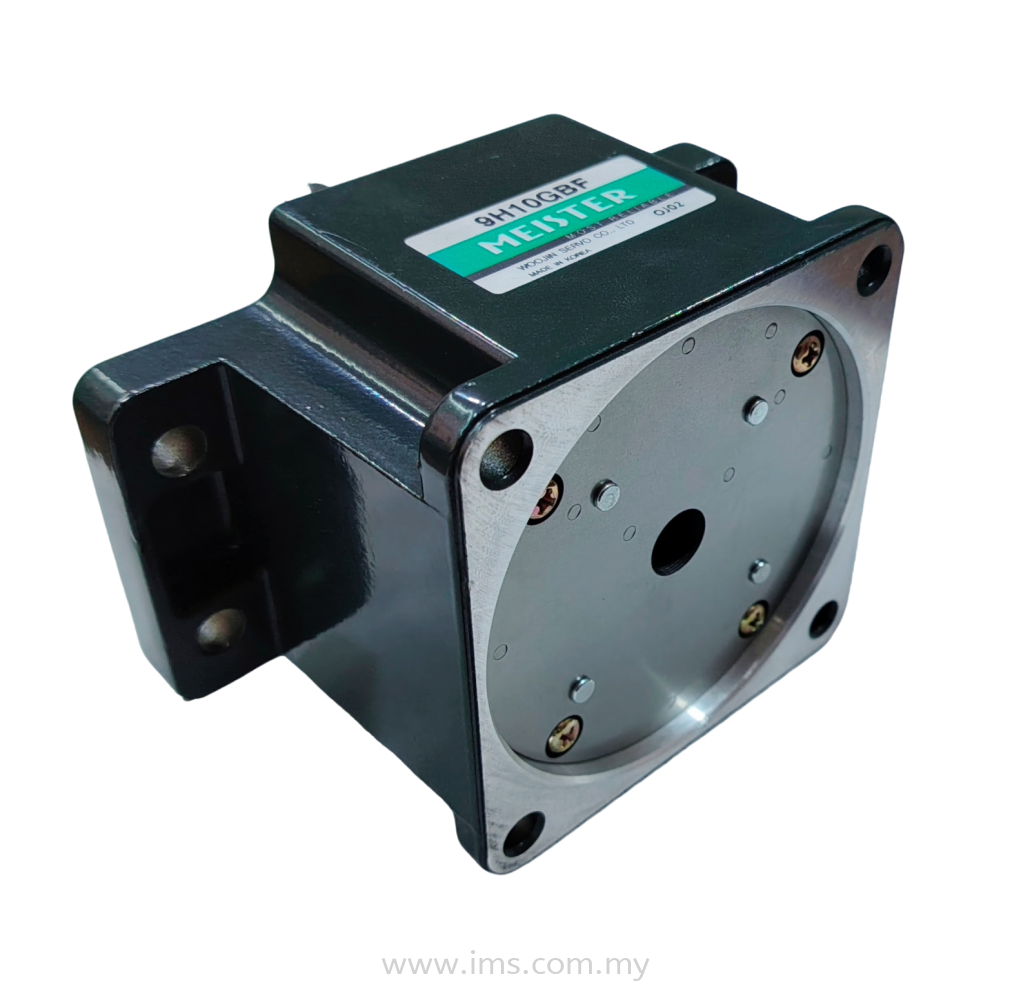

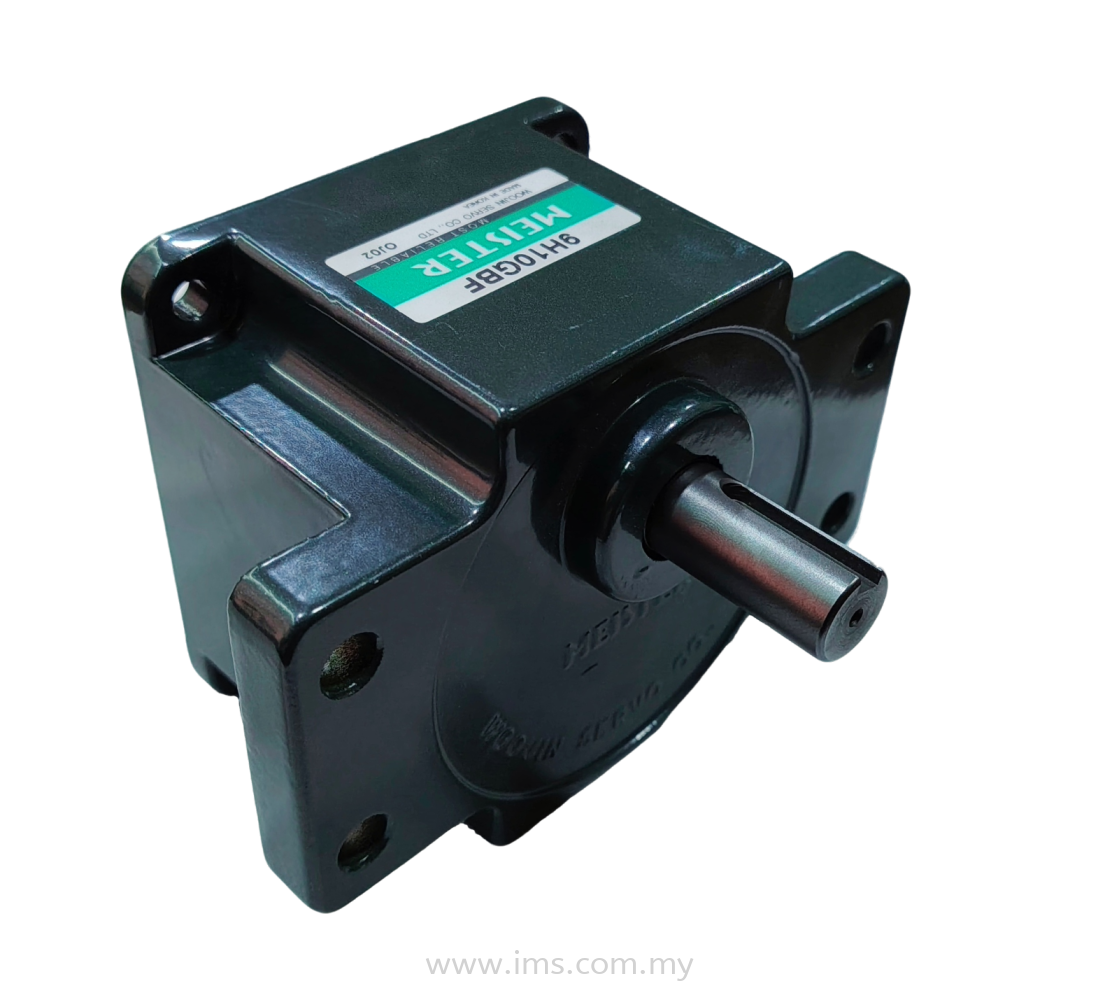

9H_GB-F Gear Head – High-Performance Heavy Duty Gear Reducer Flange Tpe

The 9H_GB-F  Gear Head is a premium industrial gear reducer designed for extra-heavy duty applications with high torque demands. Featuring a 90mm x 90mm frame, this model is engineered for precision speed reduction, durability, and smooth operation. With a torque capacity of 300 kg·cm, it is ideal for demanding mechanical systems requiring high efficiency and long-term reliability.

Key Features

• High torque capacity up to 300 kg·cm, ideal for extra-heavy duty applications
• Precision-engineered for smooth and efficient speed reduction
• All-ball bearing (B) system for enhanced performance and durability
• Standard Plate Type (U) design for robust and reliable operation in high-load environments
• Constructed with high-strength materials for continuous operation
• Compact design allows for easy integration with various motor systems

Gear Ratio Options

Select the right gear ratio based on your speed and torque needs:

• 3
• 3.6
• 5
• 7.5
• 9
• 15
• 18
• 25
• 30
• 36
• 60
• 90
• 100

Each gear ratio provides different levels of speed reduction and torque to suit your specific application.

Technical Specifications

• Size: 90mm × 90mm
• Type: Standard Plate Type (F)
• Bearing Type: All Ball Bearing (B)
• Torque Capacity: 300 kg·cm
• Mounting Type: Box Type

Operational Considerations

1. The output shaft rotates opposite to the motor shaft rotation.
2. Speed is based on motor synchronous speed (1500 rpm at 50Hz, 1800 rpm at 60Hz).
3. Actual speed may be 2 to 15% lower due to load variations.
4. Gear head sold separately and must be paired with a compatible motor.

The 9H_GB=F Gear Head is ideal for industrial automation, robotics, conveyor systems, and other high-load applications requiring precision and durability.
