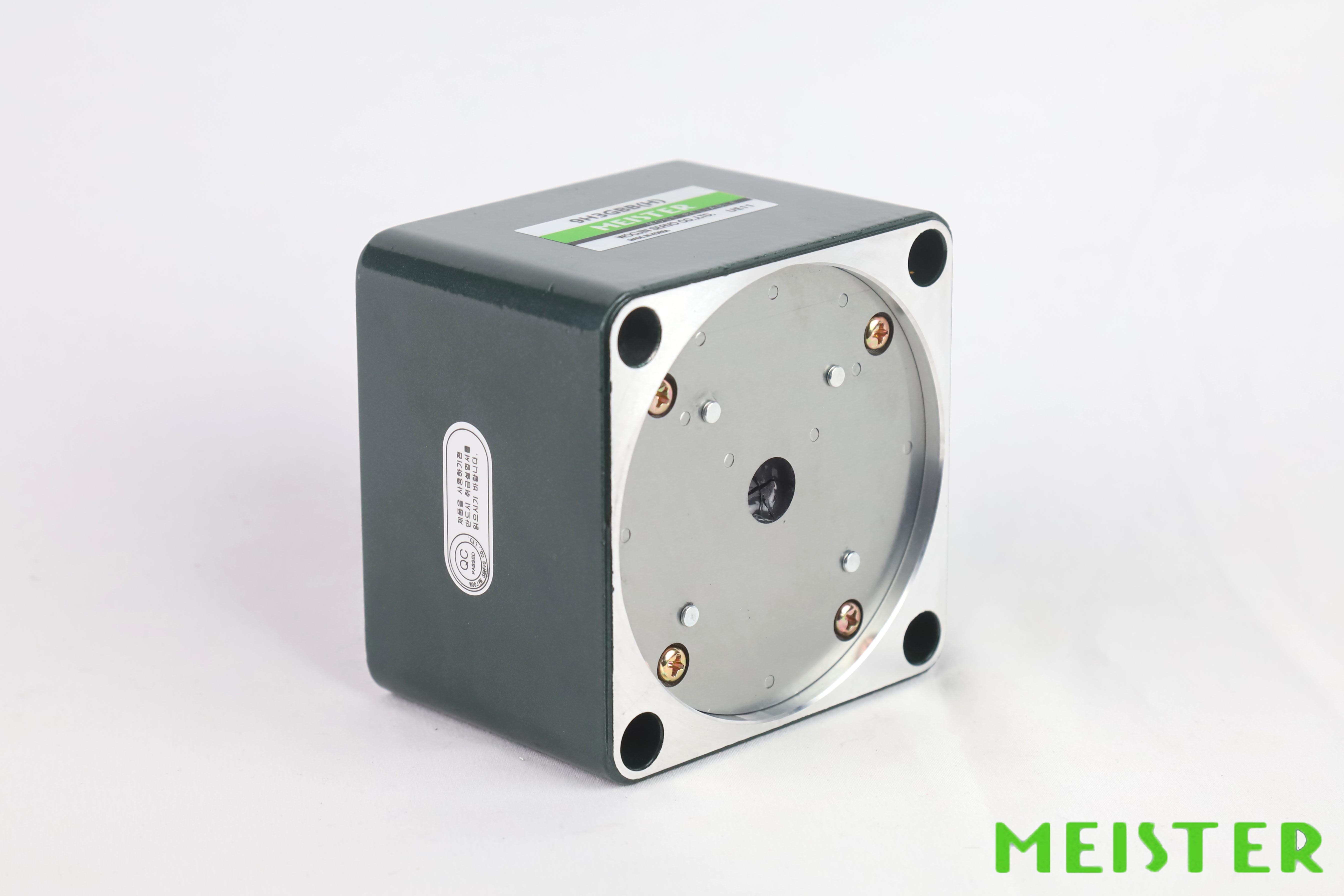

9H_GBB(H) SERIES MEISTER Induction Motor Gear Head - Heavy Duty

The 9H_GBB(H) SERIES MEISTER Gear Head - Heavy Duty is a premium, high-performance industrial gear reducer designed for demanding applications that require both high torque and speed reduction. Featuring a 90mm x 90mm frame size, the gear head is built for precision and durability, offering extra-heavy-duty performance with a torque capacity of 200 kg·cm. It is ideal for applications in industrial automation, robotics, and material handling where reliability and control are critical.

Key Features

• Heavy-duty performance with a torque capacity of 200 kg·cm, ideal for high-torque, heavy-duty applications.
• Precision-engineered for smooth and efficient speed reduction, ensuring minimal backlash and high operational efficiency.
• All-ball bearing (B) system for improved performance, reducing friction and extending lifespan.
• Constructed with high-strength materials for continuous operation in demanding environments.
• Compact design for easy integration with a variety of motor types.

Gear Ratio Options

Choose the ideal gear ratio based on your application requirements:

1. 3
2. 3.6
3. 5
4. 6
5. 7.5
6. 9
7. 12.5
8. 18
9. 20
10. 25
11. 30
12. 36
13. 50
14. 60
15. 75
16. 90
17. 100
18. 120
19. 180

Each gear ratio provides different levels of speed reduction and torque to suit a wide range of industrial applications, offering flexibility and precision in various configurations.

Technical Specifications

• Size: 90mm × 90mm
• Type: Heavy Duty (G)
• Bearing Type: All Ball Bearing (B)
• Torque Capacity: 200 kg·cm
• Mounting Type: Box Type

Operational Considerations

1. The output shaft rotates opposite to the motor shaft rotation.
2. Speed is based on motor synchronous speed (1500 rpm at 50Hz, 1800 rpm at 60Hz).
3. Actual speed may be 2 to 15% lower due to load variations.
4. Gear head sold separately and must be paired with a compatible motor.

The 9H_GBB(H) SERIES MEISTER Gear Head - Heavy Duty is designed for high-torque applications in industrial automation, robotics, conveyor systems, and other heavy-duty machinery that requires precision, durability, and long-term reliability.
