Details

---

FEATURES

The ElectroCraft Torque Power Enhanced Nema 17 is a high performance stepper motor incorporating creative design and manufacturing techniques to offer improved holding torque. Motors are available in both bipolar and unipolar windings with a variety of shaft configurations and encoder options to meet the needs of any application.

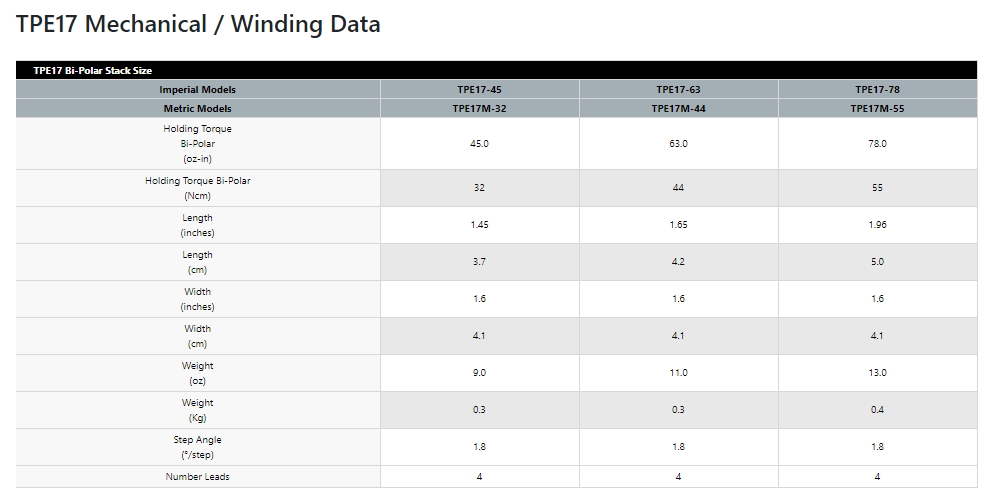

SPECIFICATION

Rated Voltage (Vm) DC : 4.51
Size Shaft : 5 mm flat type
AMPS/Phase : 1.0
Step Angle : 1.8
Holding Torque : 32

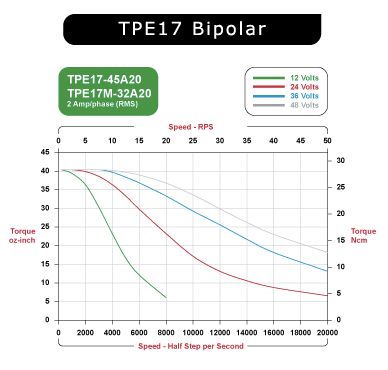

SPEED AND GRAPH TORQUE

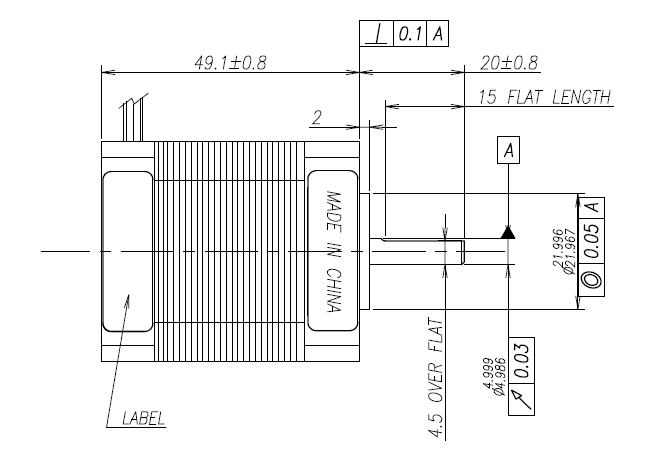

DRAWING MOTOR
