Timing Pulleys S5M

- Wide range of teeth counts available.

- Aluminum construction for durability and lightweight

- Clear anodized surface for enhanced corrosion resistance

- Chamfered screw holes for easy on-site assembly and reduced time

- Suitable for medium-precision reciprocating and conveyance systems

Timing Pulleys are an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
● Belt Width Used (mm.) : 10, 15 and 20
● Applicable with Belt Type : S5M
● Number of Teeth Minimum/Maximum : 14 and 36
● Shaft Bore Diameter Minimum/Maximum (mm.) : 5 to 30

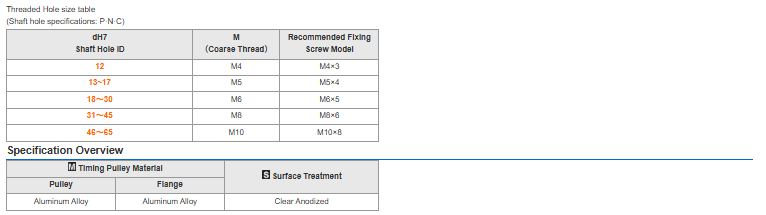

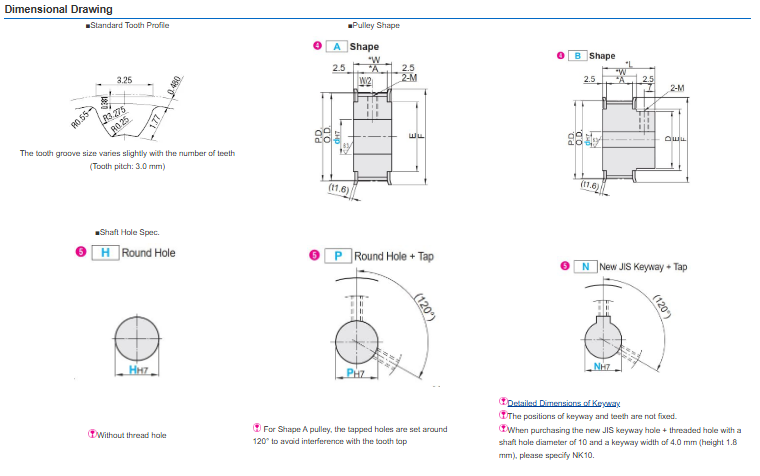

● Shaft Bore Specs. : Can select between Round Hole, Round Hole + Tap and New JIS keyway + Tap
● Material : Aluminum Alloy
● Surface treatment : Clear Anodized
[Application]
Timing pulleys are frequently utilized in systems that incorporate timing belts to regulate and govern the movement of the machinery.

Product Overview

Usually, timing pulleys, timing idlers and timing belts are widely used to design mechanisms for transmitting rotational power generated by motors.
Driving and transmission are realized through the engagement between the teeth, timing idlers and timing belts.
